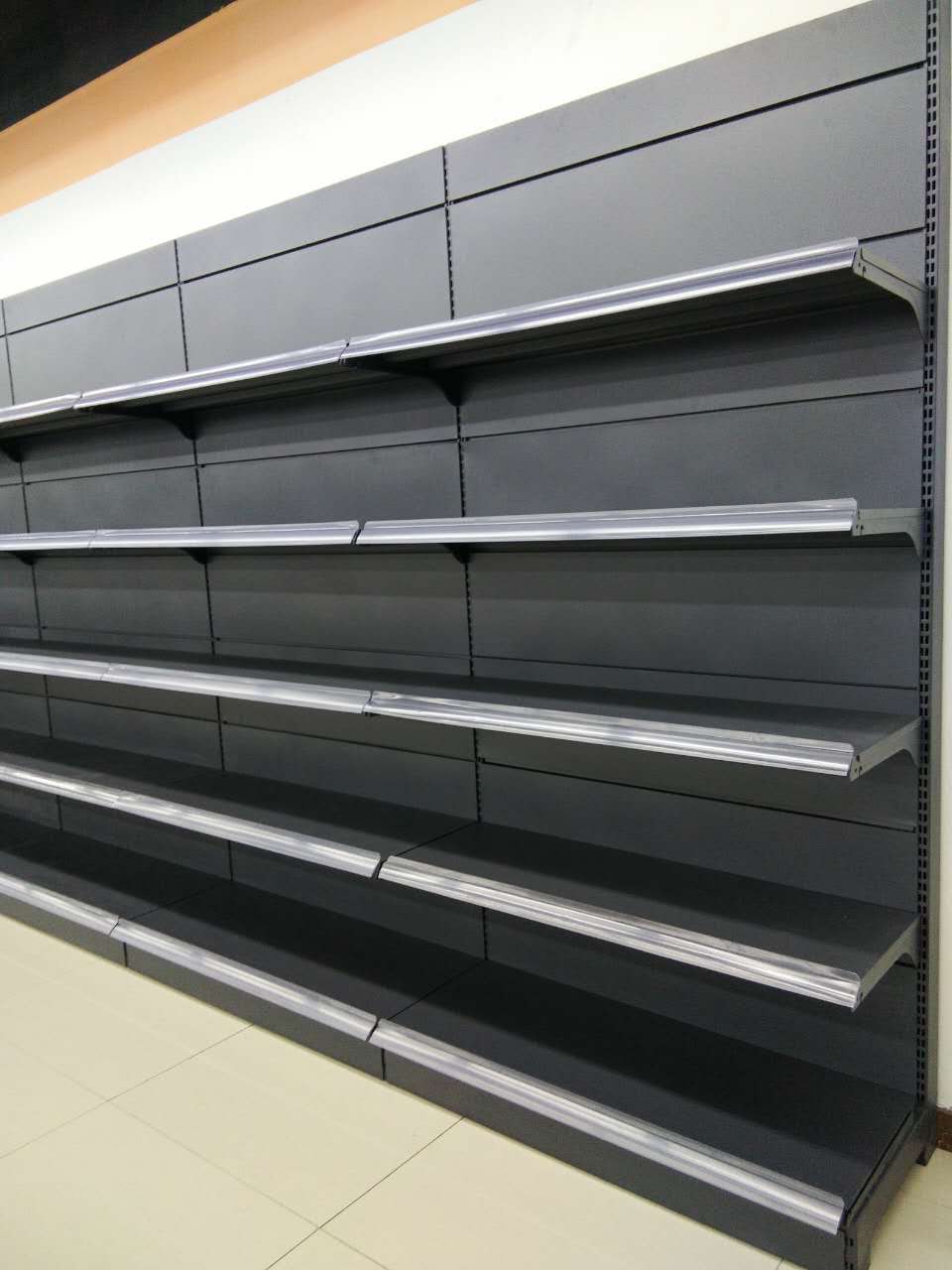

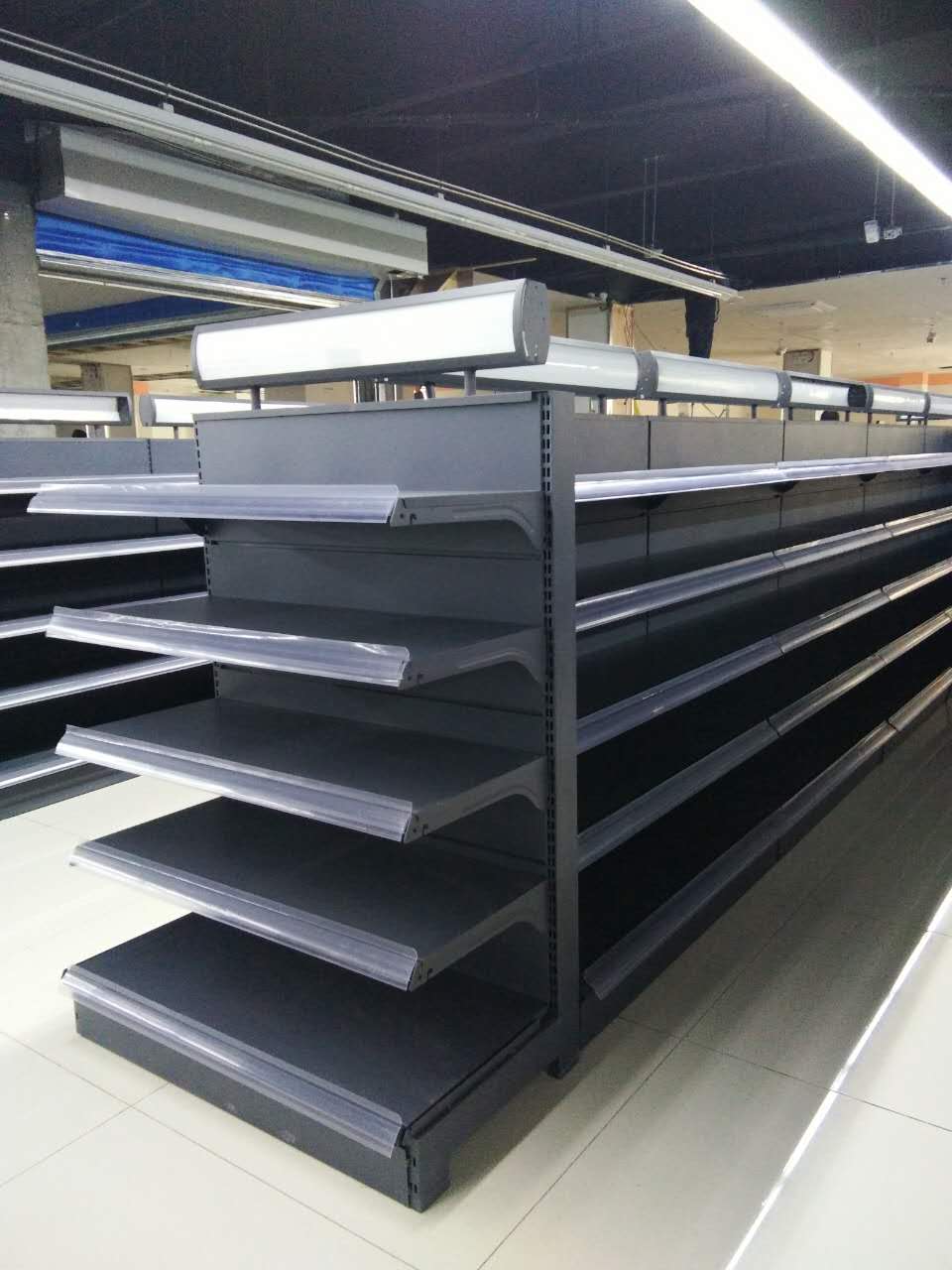

3*7 Supermarket Shelf

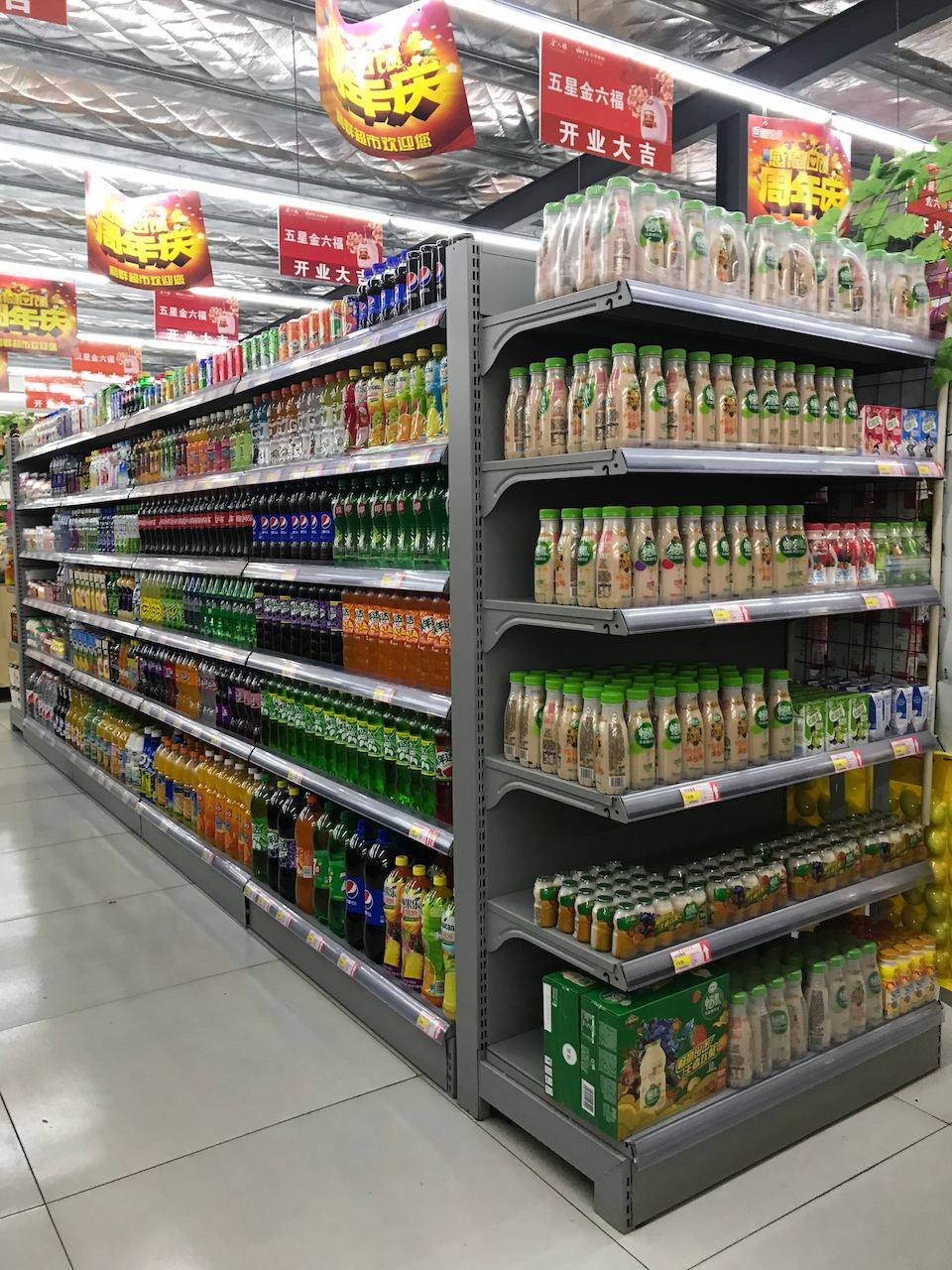

This supermarket shelf is a use case of a stationery store in Australia. This supermarket shelf adopts a buckle-type structural design, allowing for free addition or reduction of layers, with quick and convenient installation.

Columns: Made of high-quality cold-rolled SS400 steel plates, formed into cold-drawn tubes. The square tube has a cross-sectional dimension of 70×40 (length × width) and a thickness of 2.5mm, with a single-sided load-bearing capacity of up to 600kg.

Layer boards: Selected cold-rolled SS400 steel plates with a thickness of approximately 0.8mm. Reinforcing ribs are welded at the bottom, and each layer has a load-bearing range of 150-250kg.

It supports the combination of single-sided and double-sided shelves, and can be used with accessories such as corners and semicircles. The layer spacing can be adjusted arbitrarily. Some models are equipped with accessories like light boxes and baffles, which have both lighting and promotional display functions.
