Cantilever Racking Case

Customized Cantilever Racking Solution for Long Material Storage

Chaoyu provided a customized cantilever racking solution for a warehouse storing long and irregular materials such as steel pipes, aluminum profiles, timber, and panels. The customer faced challenges including inefficient floor stacking, low warehouse space utilization, and inconvenient forklift handling for oversized products. To improve storage efficiency and warehouse organization, Chaoyu designed a heavy-duty cantilever racking system with optimized load-bearing performance, open-front access, and flexible storage configurations, helping the customer achieve safer material handling and more efficient long goods storage.

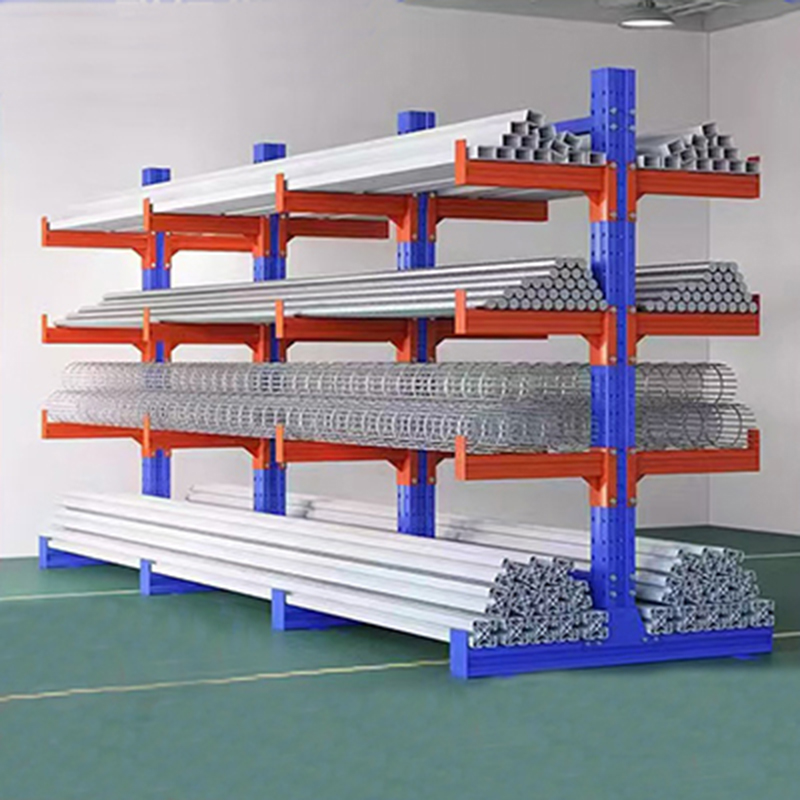

Chaoyu Cantilever Racking Solution

Based on the warehouse layout and product dimensions, Chaoyu designed a cantilever racking system with customized arm lengths, rack heights, and load-bearing specifications.

The solution included both single-sided and double-sided cantilever rack configurations to maximize storage efficiency within the available warehouse space.

Key Features of the storage rack system

Suitable for long and irregular materials
Single-arm and double-arm rack options
High load-bearing structural design
Wide storage visibility and easy inventory management
Adjustable storage configuration
Optimized warehouse space utilization
Easy forklift loading and unloading
Stable and durable steel structure

The open-front rack design allows faster storage and retrieval operations for oversized materials.

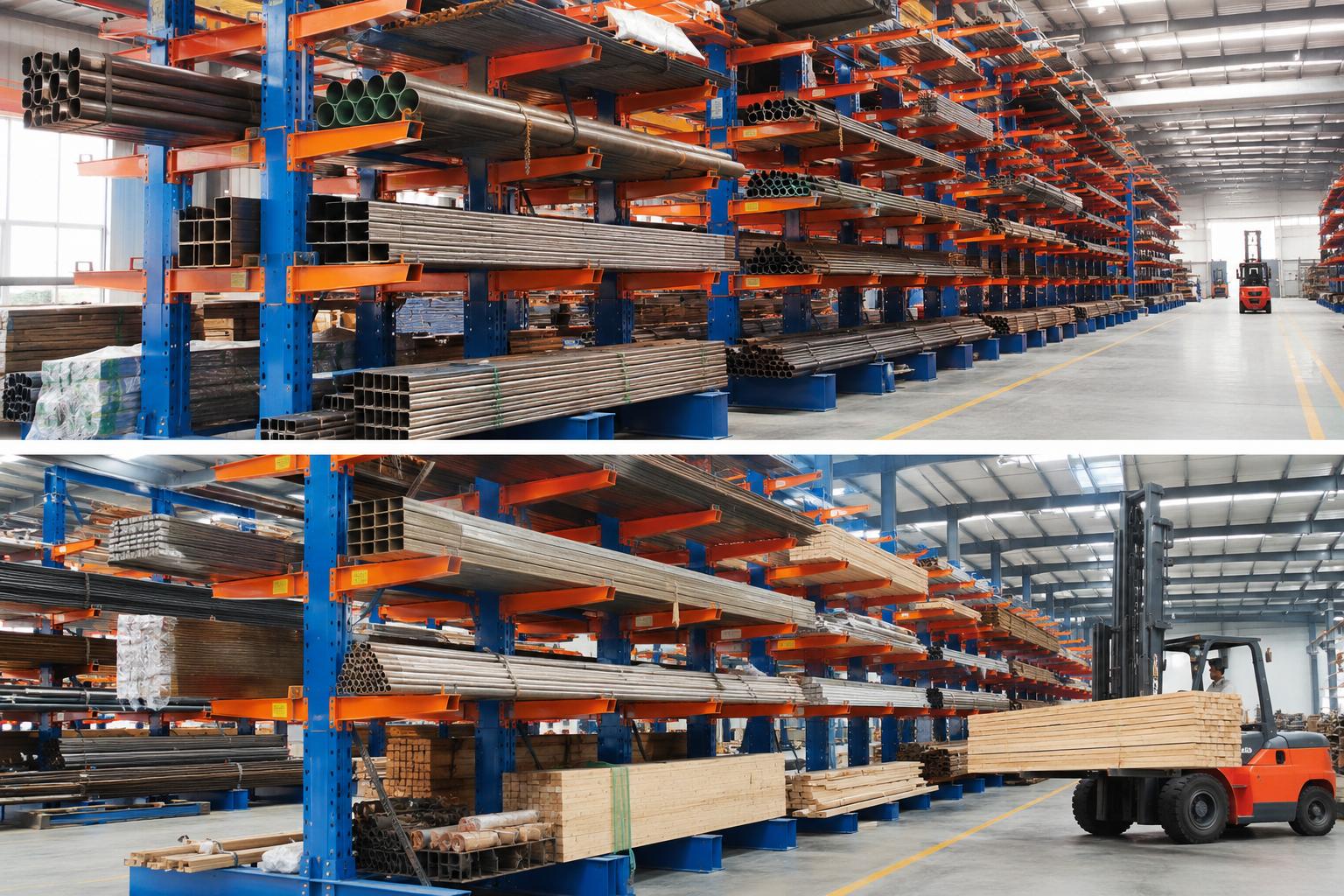

Mobile cantilever racking for long and heavy load

Industrial Cantilever Racks Specifications

Item	Details
Rack Type	Cantilever Racking
Structure	Single-Arm & Double-Arm
Application	Long Material Storage
Suitable Products	Pipes, Profiles, Panels, Timber
Material	Heavy-Duty Steel Structure
Access Method	Forklift & Manual Handling
Customization	Size & Color Available
Storage Feature	High Space Utilization

Request a Customized Cantilever Racking Solution

Looking for a reliable cantilever rack manufacturer for long material storage projects?

Chaoyu provides customized cantilever racking systems, professional warehouse layout support, and factory-direct pricing for industrial warehouses, logistics centers, and building material storage applications worldwide.

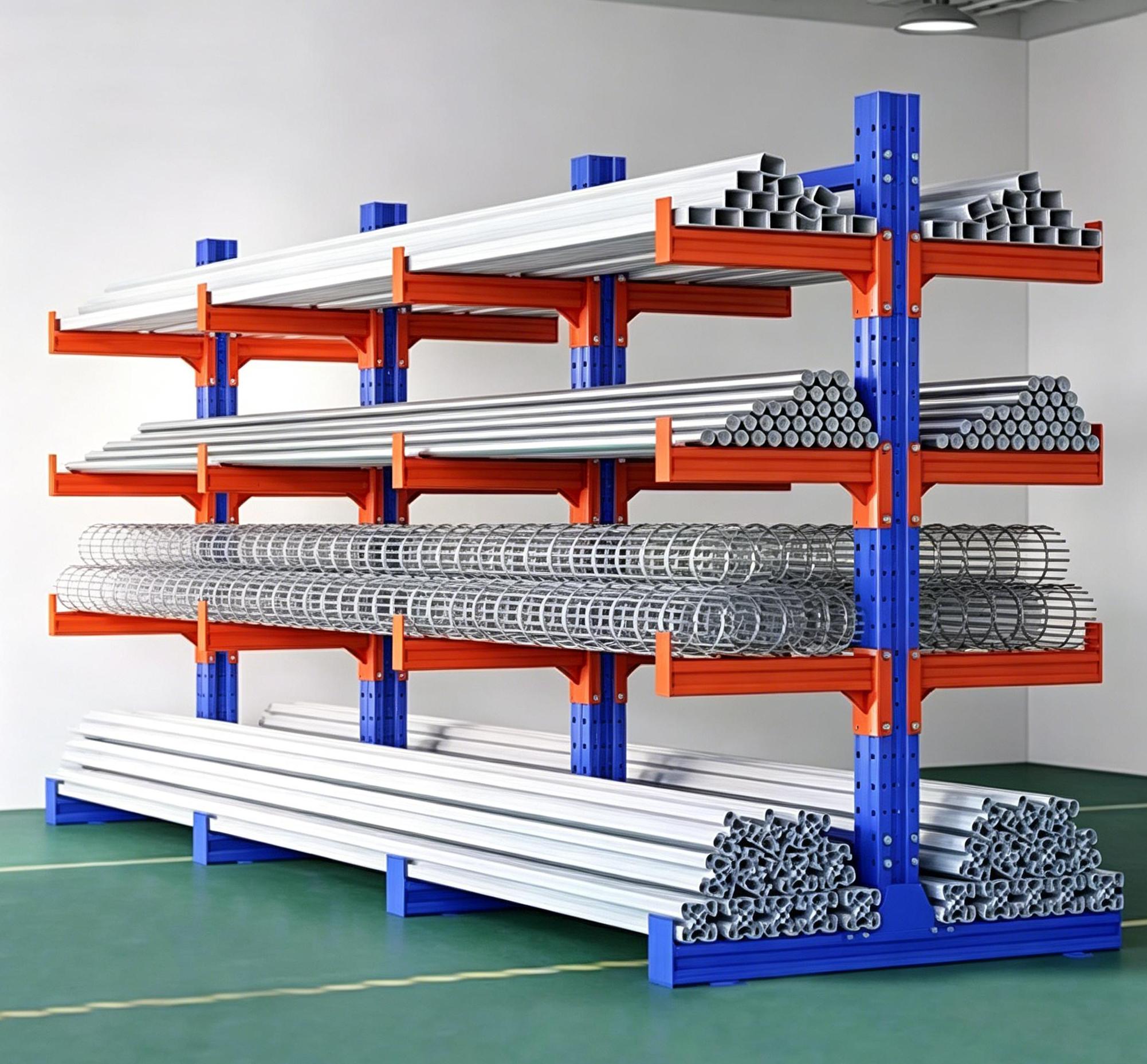

cantilever racking
