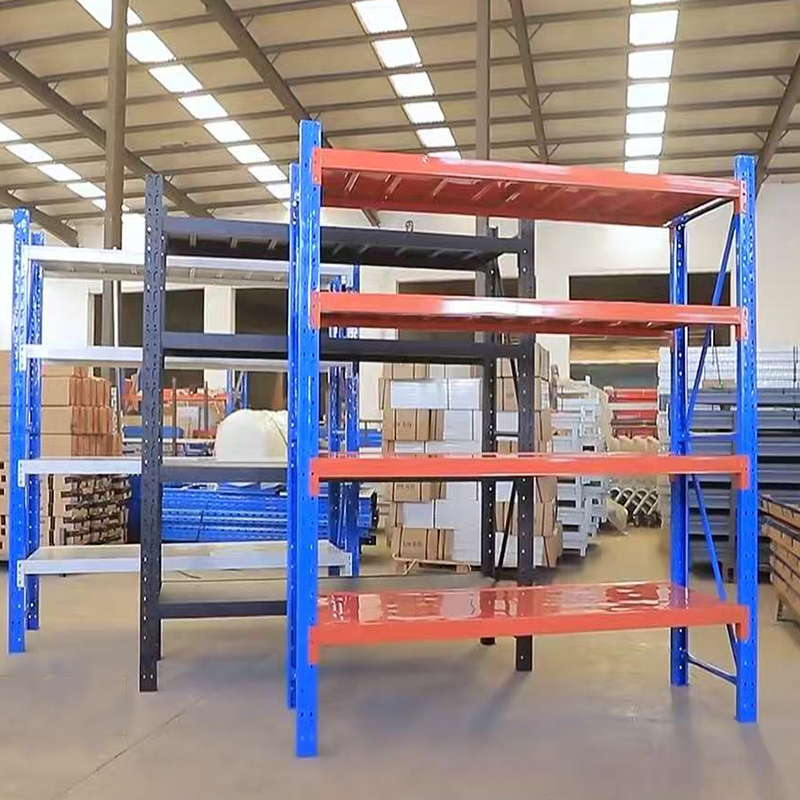

Heavy Duty Rack Case

Chaoyu successfully delivered a customized heavy duty racking system designed for large warehouse storage and industrial logistics applications.

The project required a durable and high-capacity warehouse storage solution capable of handling heavy palletized goods while maximizing vertical warehouse space and improving operational efficiency. Chaoyu heavy duty racks are widely used in manufacturing plants, logistics centers, industrial warehouses, and distribution facilities where safe and efficient pallet storage is essential.

Customer Storage Requirements

The customer required a warehouse racking system that could:

• Support heavy pallet loads over 1000kg per level

• Improve warehouse space utilization

• Provide stable and safe pallet storage

• Allow flexible warehouse layout adjustment

• Support forklift access and pallet handling

• Adapt to different warehouse dimensions and storage requirements

Traditional floor stacking created inefficient warehouse operations, reduced accessibility, and wasted valuable vertical storage space.

The customer needed a professional industrial storage solution that could improve inventory organization and warehouse workflow efficiency.

Chaoyu Heavy Duty Racking Solution

Based on the warehouse environment and storage requirements, Chaoyu designed a customized heavy duty racking system with adjustable beam levels and reinforced steel structure.

The system allows direct access to each pallet while maintaining excellent load-bearing performance and long-term structural stability.

Key Features of the Heavy Duty Rack System

• High load capacity from 1000kg to 5000kg per layer

• Adjustable beam height for flexible pallet storage

• Heavy-duty cold rolled steel structure

• Powder-coated anti-corrosion surface treatment

• Compatible with forklift operations

• Optimized vertical warehouse storage

• Easy assembly and future expansion capability

The rack dimensions, colors, and load specifications were customized according to the customer's warehouse layout and operational needs.

Project Specifications

Results After Installation

After implementing the heavy duty warehouse racking system, the customer achieved several operational improvements:

• Increased warehouse storage capacity

• Improved pallet storage organization

• Better utilization of vertical warehouse space

• Faster pallet access and retrieval

• Reduced warehouse congestion

• Improved warehouse safety and workflow efficiency

• More efficient inventory management

The new storage layout also created cleaner aisle organization and allowed forklifts to move more efficiently throughout the warehouse.

Why Heavy Duty Racks Are Ideal for Industrial Warehouses?

Heavy duty pallet racking systems are widely used for high-density industrial storage because they combine durability, flexibility, and operational efficiency.

They are suitable for:

• Manufacturing plants

• Logistics centers

• Distribution warehouses

• Industrial storage facilities

• Automotive parts warehouses

• E-commerce fulfillment centers

• Raw material storage

Compared with floor stacking methods, heavy duty racks provide better inventory visibility, safer product storage, and more efficient warehouse operations.

Why Choose Chaoyu Rack?

With over 23 years of manufacturing experience, Chaoyu has exported warehouse racking systems to more than 136 countries worldwide.

Our Manufacturing Advantages

• Professional heavy duty rack manufacturer

• Semi-automated production workshop

• Fastest powder coating line in Northern China

• 150 skilled production workers

• Rich OEM & ODM customization experience

• Strict quality control system

• Competitive shipping advantages near Qingdao Port

Chaoyu continues to upgrade production automation to provide faster delivery, stable product quality, and scalable warehouse storage solutions for global customers.

Quality and Production Capability

Chaoyu heavy duty racks are manufactured using high-quality Q235 cold rolled steel with reinforced structural components to ensure long-term durability and safety.

Production Advantages

• Stable load-bearing performance

• Precision welding and processing

• Corrosion-resistant powder coating

• Flexible rack customization

• Fast production cycle

• Professional export packaging

Every heavy duty rack system undergoes strict production inspection to ensure structural stability and reliable warehouse performance.

Frequently Asked Questions

What is the load capacity of heavy duty racks?

Chaoyu heavy duty racks can support loads from 1000kg to 5000kg per layer depending on the rack design and warehouse requirements.

Can heavy duty racks be customized?

Yes. Rack height, width, depth, beam levels, colors, and load capacity can all be customized.

Are heavy duty racks suitable for forklift operations?

Yes. Heavy duty pallet racking systems are specifically designed to work with forklifts for pallet storage and retrieval.

What industries use heavy duty warehouse racks?

Heavy duty racks are widely used in logistics, manufacturing, industrial storage, automotive, retail distribution, and e-commerce warehousing.

Request a Customized Heavy Duty Racking Solution

Looking for a reliable heavy duty rack manufacturer for your warehouse project?

Contact Chaoyu today for customized racking storage solutions, warehouse layout support, and competitive factory-direct pricing.
